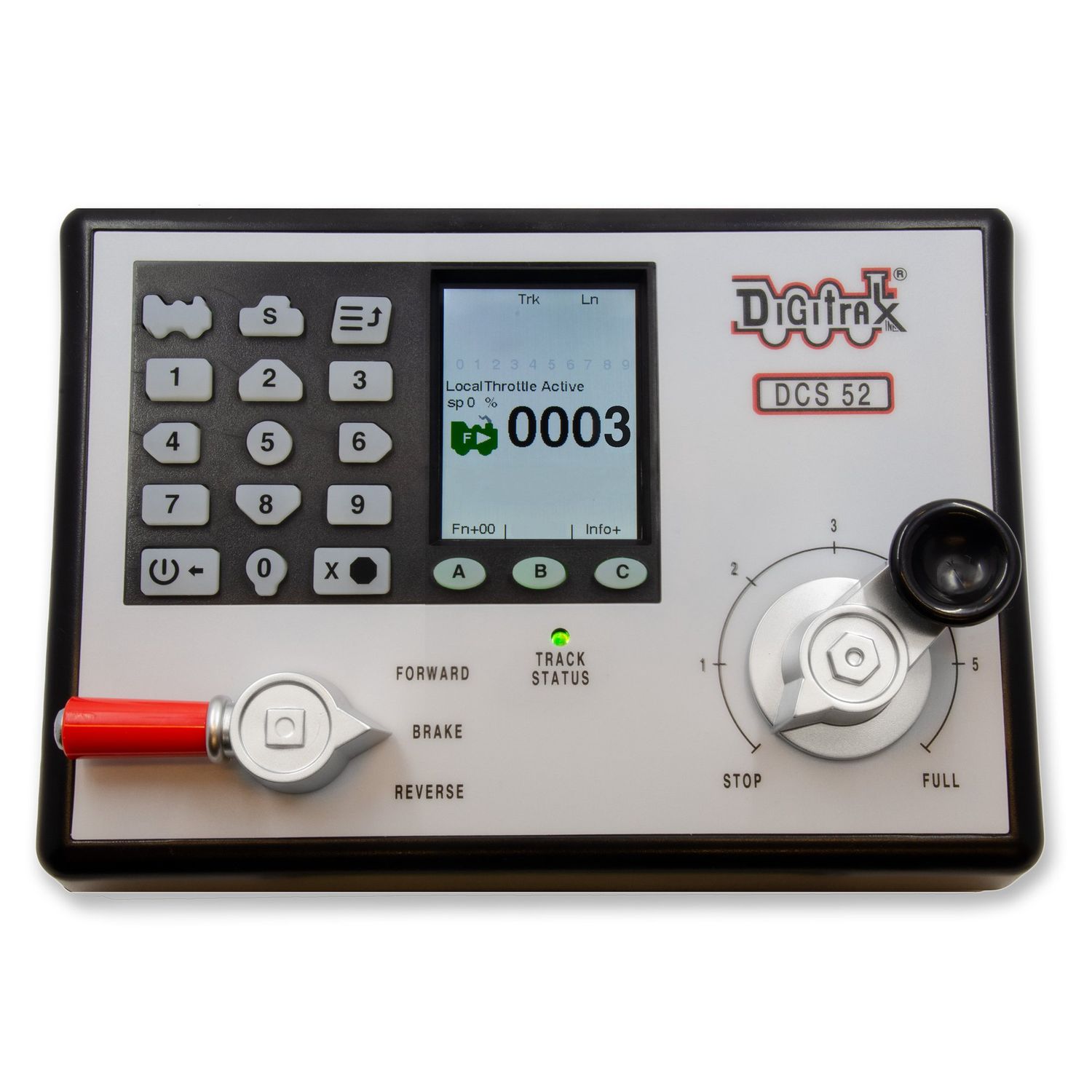

Zephyr Express: All-in-one Command Station/Booster/Throttle

Zephyr Express Set Includes:

• DCS52 All-In-One Throttle/Command Station/Booster to run your layout
• PS314 Power supply to provide power to run your DCS52
• Zephyr Express Quickstart Guide
• Zephyr Express Manual

Zephyr Express Offers:

• Cost effective entry level LocoNet Compatible system
• Color 2.4” LCD Screen.
• Large Backlit Keypad.
• Speed control knob and direction switch with brake.
• Integrated USB Computer Interface
• Easy 2 and 4 digit addressing.
• Smooth speed control.

Run multiple trains at once without blocking!

• Run up to 20 addresses at the same time on your system.
• Run up to 20 throttles at the same time on your system.

Jump Ports for using DC power packs as additional throttles

• Use one or two smooth DC power packs as throttles to control DCC equipped locomotives.
• Simple, cost effective way to add more throttles to your Zephyr Express set.
• Makes it easy to share the fun of DCC with layout visitors and young operators.
• Functions on locos controlled by Jump throttles remain active.

Over 9000 Locomotive Addresses

• Use Address 00 to run one or more locos without DCC decoders
• Two Digit Addressing is easy to use. (Address 01-127)
• Four Digit Addressing-use the number painted on your engines as its address.

3.0 Amps of Power to run multiple trains.

• Booster outputs 13V DC for safe operation in N and HO scales.

Function Control

• Control lights and sound with 29 functions (F0-F28)
• Function 2 is a special non-latching key that can be used to sound the horn for as long as the key is held down.
• Constant brightness lighting. Headlights can be directional or independently controlled (depending on decoder).

Stationary Decoders, Turnout Control & Turnout Position Reporting

• Access to stationary decoder control for turnouts and other devices.
• Control 2000+ stationary decoder addresses.

Consisting

• Universal consisting, Digitrax preferred method. ALL locos can be consisted, even analog locos.
• Advanced consisting, allows only advanced consist capable mobile decoders.
• Basic consisting, program decoders to run on same address.

Decoder Programming

• Built in read/write programmer that can read and write all CVs.
• Supports Direct programming (Digitrax preferred method). Also supports paged & register mode programming.
• Operations mode programming can be used to program decoders on the layout.

Expandability with Digitrax LocoNet

• Use Zephyr Express as a starting point for your Digitrax LocoNet System, then add components.
• Use Zephyr Express as an expansion set with Digitrax equipment you already have installed.
• Add Radio or IR via LocoNet. Just plug-in a UR90, or UR92 receiver and add IR and/or Radio throttles.



Comes Complete with DCS52 Command Station, PS314 Power Supply, and System Reference Manual.
